Drainage Pumps

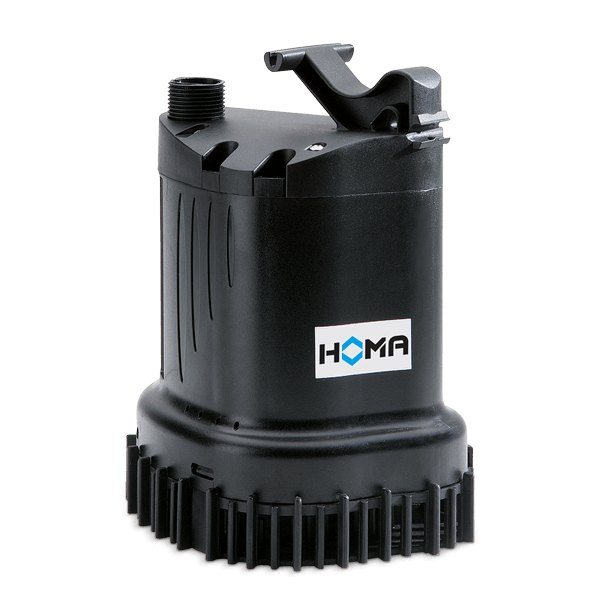

Jacket Cooled Submersible Drainage Pump for Clear and Waste Water, for Permanent Operation – C135 W
Design
Fully submersible pump consisting of:
- Pump: Single stage submersible pump with vertical discharge BSP 1”M.
- Impeller: Vortex impeller, spherical clearance 8 mm, self-cleaning in case of blocked impeller by short-term reverse running of the motor.
- Motor: Canned wet-rotor, seal-less, rotor shaft lubricated by pumped liquid. Insulation class B. Motor protection IP 68.
- Shaft/Bearing: Stainless steel ceramic shaft, slide bearing.
- Cable: H05RN-F3G0.75
